OpenMV SingTown Cam H7 R2 Genuine-STM32 Image Processing Machine Vision Smart Camera Robotics Color&Shape Detection OpenMV4 H7
Product Overview
Marke: OpenMV
Speicherkapazität: 2 MB
Konnektivitätstechnologie: Kabellos
USB-Anschlüsse insgesamt: 1
Anzahl der Artikel: 1

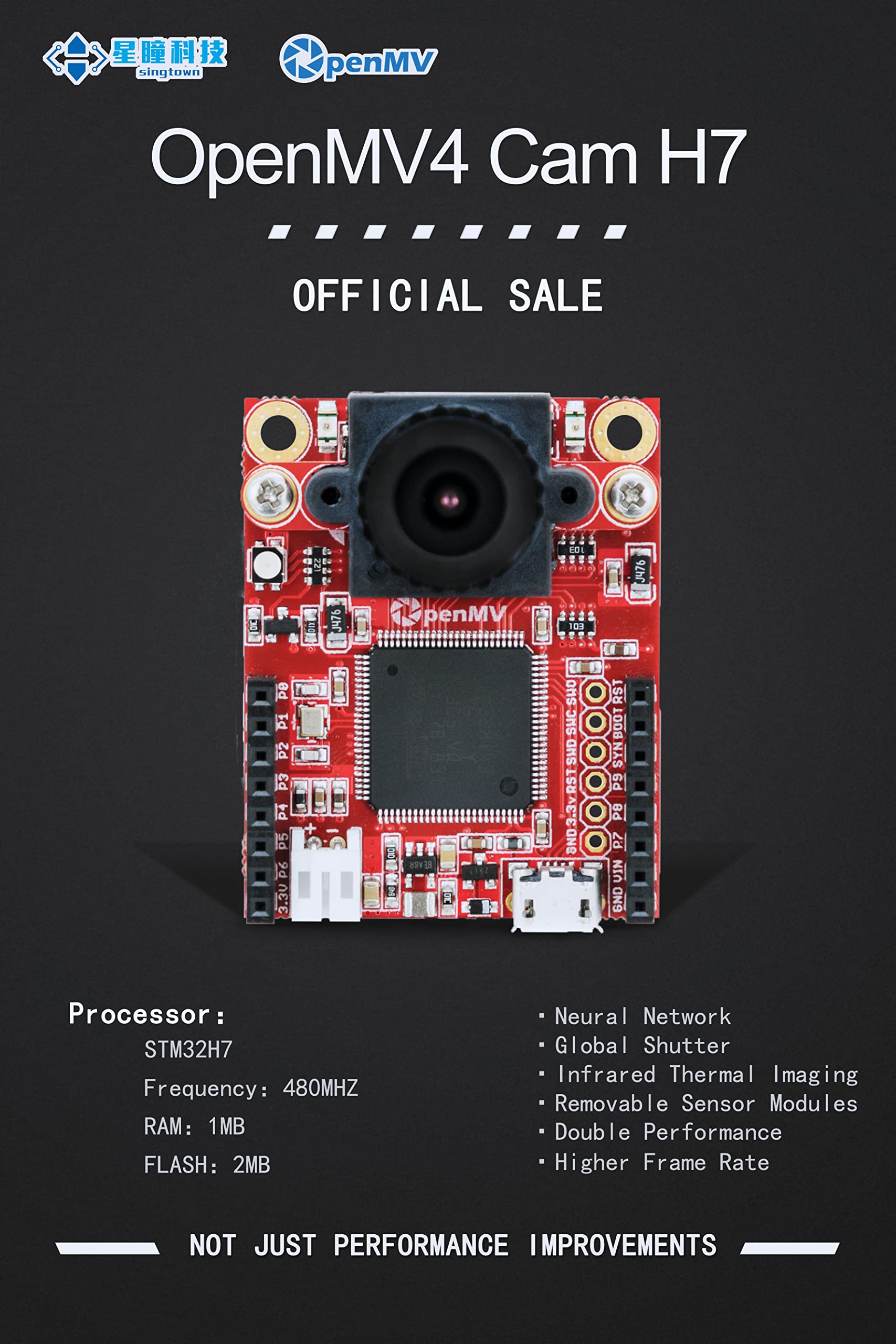

- Efficient Vision Processor: Powered by a 480 MHz ARM Cortex-M7 with 1MB SRAM and 2MB flash, perfect for running machine vision applications at up to 80 FPS on QVGA resolutions.

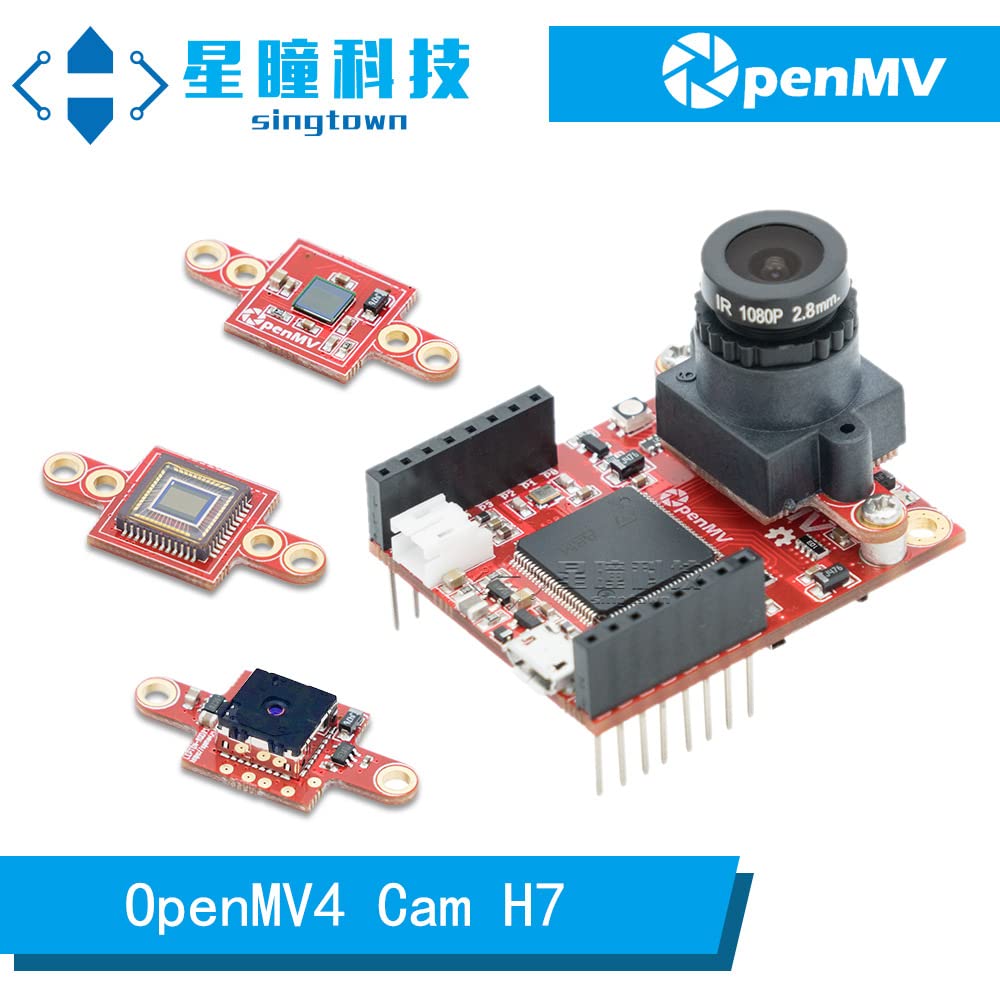

- Versatile Camera Module: Includes a MT9M114 image sensor with 640x480 resolution and an M12 lens mount, supporting upgrades for specialized lenses or thermal and global shutter modules.
- Comprehensive Connectivity: Features USB, SPI (80Mbps), I2C, CAN, and UART interfaces, with 10 I/O pins for PWM, ADC, DAC, and servo control, supporting diverse project needs.
- Python-Friendly Programming: Leverage MicroPython to easily execute complex vision algorithms and manage I/O pins, simplifying real-world vision integration.
- Compact and Low Power: Lightweight 16g design with power consumption as low as 110mA, ideal for robotics, IoT, and portable applications.
